OneUp Components ISCG 05 Underbash

ISCG05 Underbash

$47.19 USD
$58.99 USD
-$11.80 USD (21%)
Shipping and Returns

Orders over $99 ship for free. Most orders ship within 24 hours or the next business day.

Delivery times vary by destination country.

Return unused and unopened items within 30 days for a full refund.

Orders are shipped from our headquarters in Squamish, BC, Canada, and customers are responsible for any applicable duties, taxes, and fees.

Learn more on our shipping and returns page.
In stock! Usually ships within 24 hours.

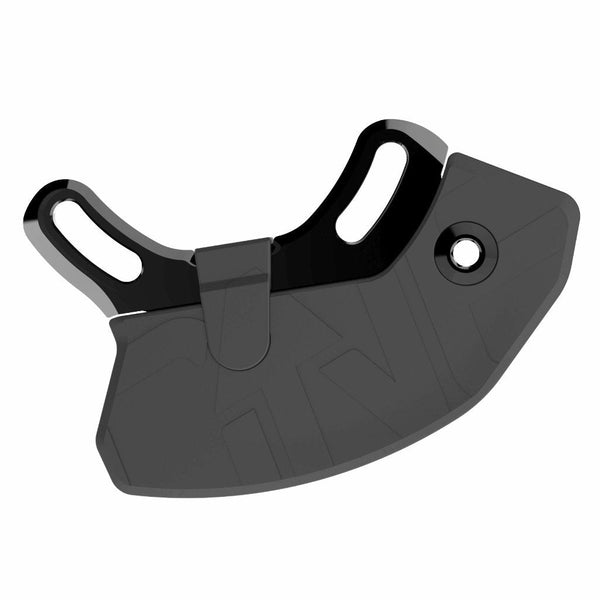

If you're not looking for chain retention or your bike has an integrated chain guide, you can still add some bash protection with the OneUp ISCG05 Underbash.

The Underbash includes 3 different sizes of bash plate for compatibility with chainrings from 28-36T. Designed for frames with 2 ISCG05 tabs only (Evil, Rocky Mountain, etc). If your bike has three ISCG05 tabs, check with the frame manufacturer to ensure the lower tabs are strong enough for a bash application. Failure to do so could result in frame damage.

FEATURES

  • Install without removing your crank
  • Single tool install and adjustment
  • Boost compatible
  • Oval Compatible
  • Stainless Steel hardware
  • Includes 3 bash plates (28-30T, 32-34T, 36T)

    SPECS

    Weight:  68g 32-34T
    Capacity: 28-36T
    Chainline: 2.5mm adjustment
    Mount: ISCG05 2-Bolt ONLY
    Color: Black
    Material: 7075 aluminum, glass reinforced thermoplastic

    COMPATIBILITY
    • Not compatible with E-bikes.



    UNDERBASH SETUP INSTRUCTIONS

    1. Hold backplate directly against ISCG05 tabs. Check for clearance between the back side of the bashplate and the bike frame (use included 2.5mm spacers if necessary to space the backplate away from the frame).
    2. Rotate backplate to desired location and torque bolts to 5Nm



    BASH REPLACEMENT INSTRUCTIONS

    1. Remove Underbash from bike
    2. Remove bolt retaining clip from rear bash plate bolt by pushing a 4mm hex through the bolt from the backside of the Underbash.
    3. Remove Bash bolts using a 5mm hex
    4. Select desired bash plate and reinstall bash bolts to 6Nm
    5. Reinstall bolt retaining clip on the rear bash plate bolt
    6. Reinstall Underbash onto bike
